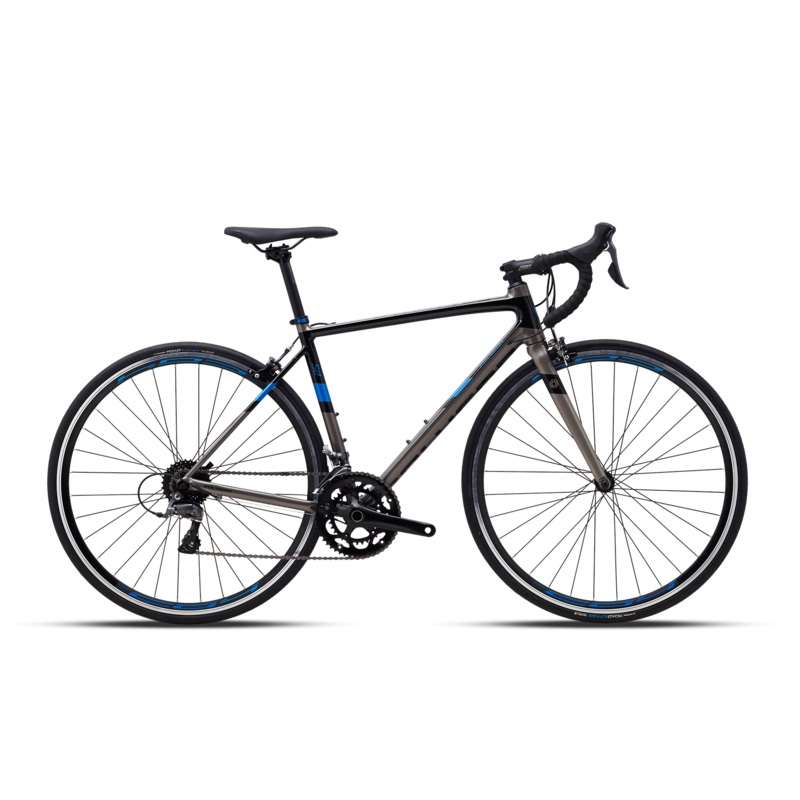

The all-new Strattos defines a new way of experiencing the road. Built with alloy frame and carbon fork, whether for a scenic ride with friends or a high-adrenaline race around the block; Strattos is the best friend that would always be ready to ride with you.
Specifications
| Frame |
ALX ALL-ROUND, HUB SPACING: QRx130mm
|
| Fork |
ACX ALL-ROUND, TAPER 1-1/8″ TO 1-1/2″
|
| Head Set |
ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40
|
| Stem |
ENTITY SPORT ALLOY, EXT: 90mm (XS, S) / 100mm (M, L) / 110mm (XL), BAR BORE: 31.8mm, RISE/DROP: 7degree
|
| Handlebar |
ENTITY SPORT ALLOY, W: 400mm (XS, S, M) / 420mm (L, XL), BAR BORE: 31.8mm, RISE/DROP: 124mm, BEND/REACH: 80mm
|
| Rear Derailleur |
SHIMANO TIAGRA RD-4700-SS DIRECT ATTACH
|
| Shifter |
SHIMANO TIAGRA ST-4700, 2×10-SPEED DUAL CONTROL LEVER
|
| Bottom Bracket |
SHIMANO BSA THREADED FOR 2-PIECE CRANKSET
|
| Crank Set |
SHIMANO TIAGRA FC-4700 50/34T, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL)
|
| Cassette |
SHIMANO CS-HG500 12-28T SPROCKET
|
| Tire |
PERFORMANCE TIRE 700x28C
|
| Seat Post |
ENTITY SPORT ALLOY, DXL: 27.2 x 350mm, OFFSET: 15mm
|
| HEIGHT / cm |
154-164 |
162-170 |
168-176 |
174-181 |
180-187 |
| SIZE |
XS |
S |
M |
L |
XL |
| STRATTOS S |
|
|
|
|
|
Geometry
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
| Size |
Seat Tube Length |
Seat Tube Angle |
Effective Seat Tube Angle |
Head Tube Length |
Head Tube Angle |
Effective Top Tube |
BB Height |
BB Offset |
Chainstay Length |
Wheelbase |
Frame Reach |
Frame Stack |
Standover Height |
| XS |
450 |
75 |
75 |
90 |
72 |
515 |
272 |
72.5 Drop |
415 |
975.54 |
382.5 |
494.4 |
696.7 |
| S |
470 |
74.5 |
74.5 |
105 |
72.5 |
525 |
272 |
72.5 Drop |
415 |
977.32 |
383.5 |
510.3 |
715.7 |
| M |
500 |
74 |
74 |
130 |
73 |
540 |
274.5 |
70 Drop |
415 |
984.83 |
387.1 |
533.3 |
746.5 |
| L |
520 |
73.5 |
73.5 |
155 |
73 |
555 |
274.5 |
70 Drop |
415 |
995.01 |
390 |
557.2 |
767.1 |
| XL |
550 |
73 |
73 |
185 |
73 |
570 |
277 |
67.5Drop |
415 |
1005.89 |
391.6 |
583.4 |
521.2 |
